CW61100B Universal Lathe

CW61100B

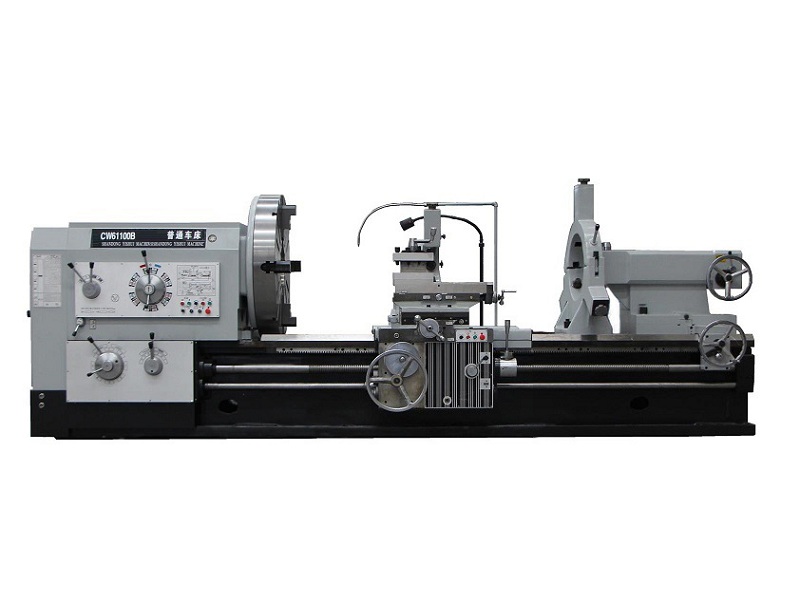

CW61100B series universal lathe or conventional lathe is a series of big size heavy duty lathe with 755mm bed width and 6-10 tons loading capacity, it is widely used in the heavy work-piece turning works, with the advantages such as low cost, good rigidity, suitable for heavy cutting, the machine bed length can be customized according to real work demand when have request beyond the normal models, standard machine details as below specifications:

SPECIFICATION OF YIMAKE CONVENTIONAL LATHE MACHINE
ITEMSUNITMODEL CW61100B
CapacityMax. diameter swing over bedmmΦ1000
Max. diameter swing over cross slidemmΦ610
Distance between centersmm1500/2000/3000/4000/5000/6000
Width of bed waymm755
Max. load capacityT6
SpindleSpindle boremmΦ130
Spindle nose taper–Metric 140/MT6
Spindle nose type–A2-15
Spindle speed steps–FWD. 21 steps
Spindle speed rangerpm3.15-315
Chuck sizemmΦ1000
Chuck type–4-jaw manual
TurretTurret type–Manual 4 position
Tool shank sizemm45×45
FeedX axis travelmm520
Z axis travelmm1350/1850/2850/3850/4850/5850
X axis feed grade/rangemm/r56/0.05-6
Z axis feed grade/rangemm/r56/0.1-12
X axis rapid traverse speedmm/min1870
Z axis rapid traverse speedmm/min3740
Metric thread grade/rangemm44/1-120
Inch thread grade/rangeT.P.I.31/28-3/8
Module thread grade/rangemm45/0.5-60
DP thread grade/rangeD.P.30/56-1
TailstockTailstock quill diametermmΦ160
Tailstock quill taper–MT6
Tailstock quill travelmm300
MotorsMain spindle motorkW22
Rapid traverse motorkW1.5
Coolant pump motorkW0.125
DimensionsWidth x Heightmm2000×1800
Lengthmm4600/5100/6100/7100/8100/9100
WeightNet weightT9.6/10.1/10.7/11.7/12.7/13.7
